GASING ASLI

ROOFING UNIDEK

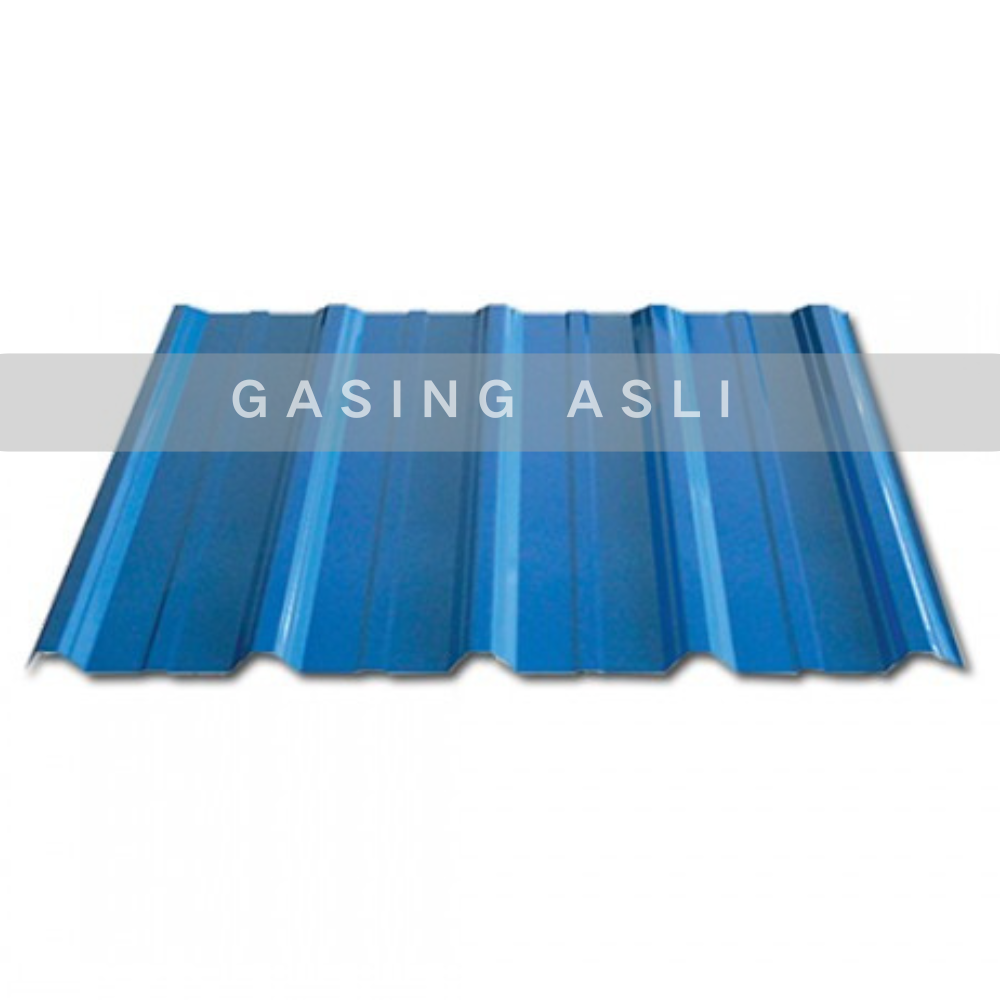

UNIDEK® is a modern ribbed profile which has high strength, light weight and long spanning capabilities. It is manufactured via continuous processes of cold forming High-Tensile Zincalume® steel or Clean Colorbond® steel therefore can be supplied in any length limited only by transportation and handling.

Features:

762mm cover width
Economical profile
Easy fixing
Spring curving
Anti-capillary side laps
Site forming capability
Shorter lead time, locally produced in Kuching, SriAman, Sibu, Btu & Miri.

note: all measurements are nominal only and are dependent on thickness and tensile strength of material used.

Material Choices:

ZINCALUME steel AZ150 G550
Clean COLORBOND ULTRA MATT* steel AZ200 G550
Clean COLORBOND XPD PEARLESCENT* steel AZ150 G550
Clean COLORBOND THERMATECH steel AZ150 G550
Clean COLORBOND CAPERO steel AZ150 G550
PRIMA-R MAJU* AZ100 G550

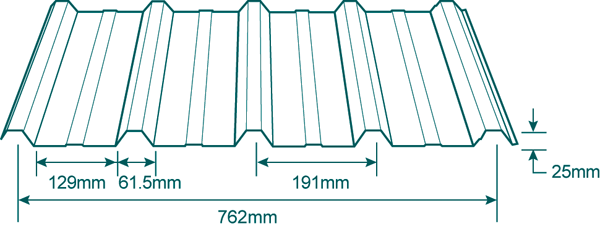

Specification

Effective width: 762mm
Ribs height: 25mm

Tolerance:
Length: +/- 10mm
Cover width: +/- 4mm

Clean COLORBOND® steel, AZ150 G550

Clean COLORBOND® is the pre-painted ZINCALUME® steel with the ability to prevent tropical dirt staining and better colour retention. Clean COLORBOND® paint system is oven cured with nominal gloss of 25% which conforms to Australian Standard AS2728 Category 3. It is certified to BOMBA Class ‘O’ (AS1530) with heat resistance up to 100° C.

Other Materials

Other materials are also available upon request;

Clean COLORBOND® ULTRA AZ200 G550 steel.
Clean COLORBOND® XPD Pearlescent AZ150 G550 steel.
PrimaMaju AZ100 G550 steel.

Quality Control

With the certification of MS/ISO 9001: 2008 Quality Management System, UGI ensures high quality Clean Colorbond® and Zincalume® steel are precisely cold formed into UNIDEK® steel roofing sheet.

How to specify UGI Steel Roofing System:

0.48mm TCT UGI UNIDEK Clean COLORBOND with AZ150 G550 metal roofing with all necessary fixing accessories.
1 layer UGI double sided sisalation aluminium foil.
1 layer Thermalrock B40 – 50mm thickness @ 40 kg/m³.
1 layer of UGI GI roof mesh.
